20' Standard - Hapag-Lloyd

Default
Inside Dimensions

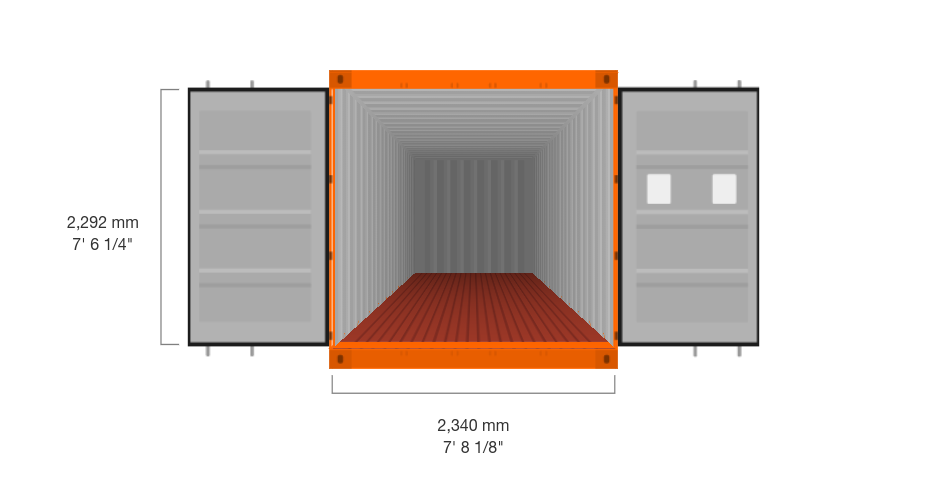

Door Opening Dimensions

2,340 mm
7' 8 1/8" 2,292 mm
7' 6 1/4" 2,352 mm
7' 8 5/8" 2,395 mm
7' 10 1/4" 5,900 mm
19' 4 1/4"

General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity	33.2 cbm / 1,172 cbft
ISO Type Group	22 GP
ISO Size Type	22 G1

Standards

20' Standard
40' Standard
40' Standard High Cube
45' Standard High Cube

Inside Dimension

Measure	Length	Width	Height
Millimeters	5,900	2,352	2,395
Feet	19' 4 1/4"	7' 8 5/8"	7' 10 1/4"

Door Opening

Measure	Width	Height
Millimeters	2,340	2,292
Feet	7' 8 1/8"	7' 6 1/4"

Weight

Measure	Max Gross	Tare (Weight)	Max Payload
Kilograms	30,480	2,350	28,130
Pounds	67,197	5,181	62,016
