2,290 mm
7' 6 1/8"
2,264 mm
7' 5 1/8"
2,280 mm
7' 5 3/4"
2,159 mm
7' 1"
5,450 mm
17' 10 1/2"

General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity 28,1 cbm / 1,006 cbft
ISO Type Group 22 RT
ISO Size Type 22 R1

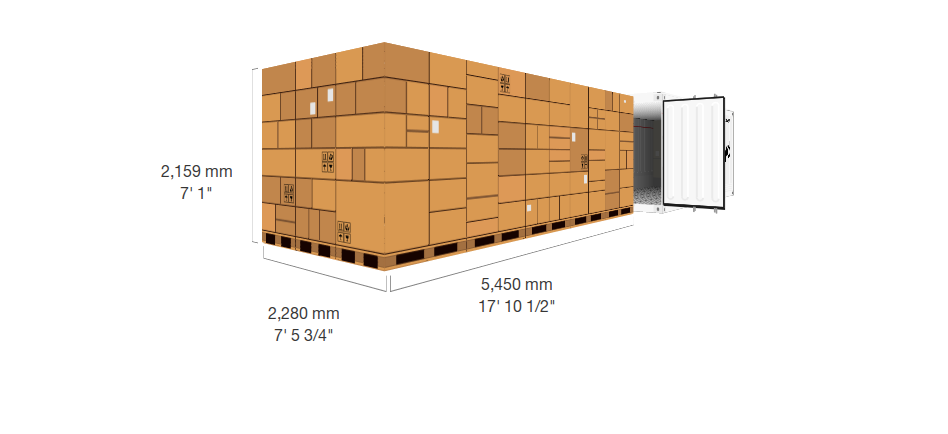

Inside Dimension

Measure Length Width Height
Millimeters 5,450 2,280 2,159
Feet 17' 10 1/2" 7' 5 3/4" 7' 1"

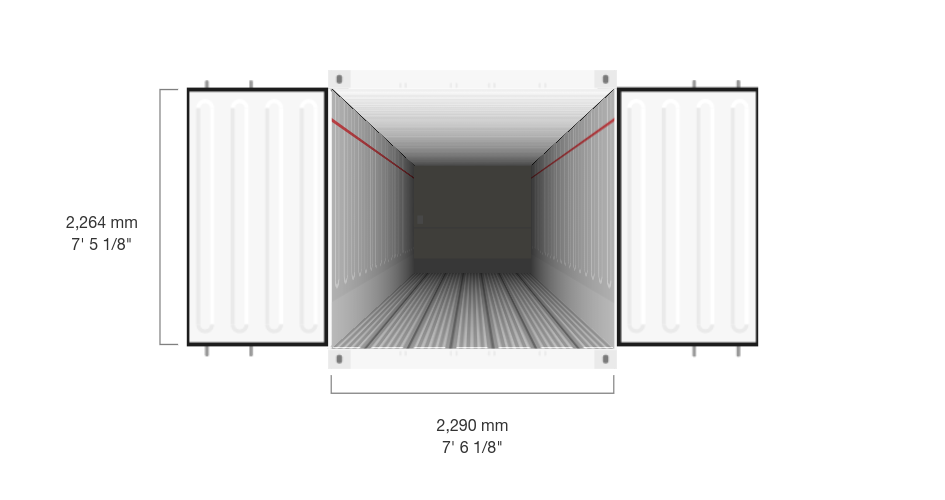

Door Opening

Measure Width Height
Millimeters 2,290 2,264
Feet 7' 6 1/8" 7' 5 1/8"

Weight

Measure Max Gross Tare (Weight) Max Payload
Kilograms 32,000 2,860 29,140
Pounds 70,547 6,305 64,242
