20' Open Top High Cube

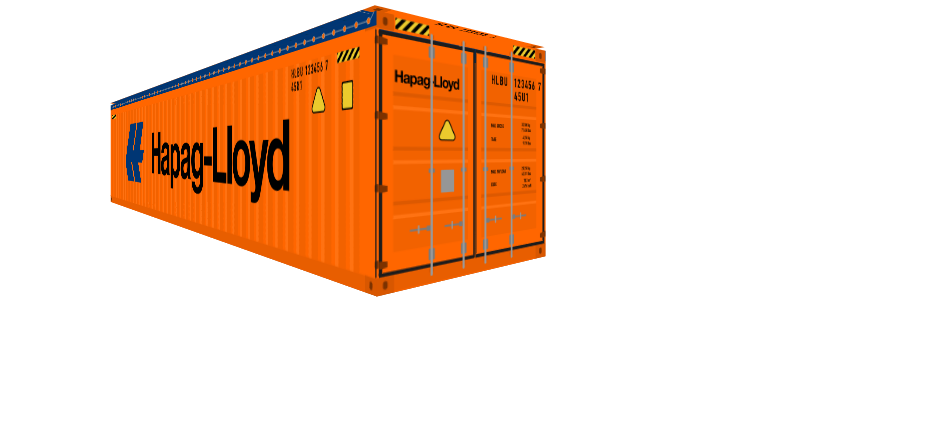

open top high cube Default

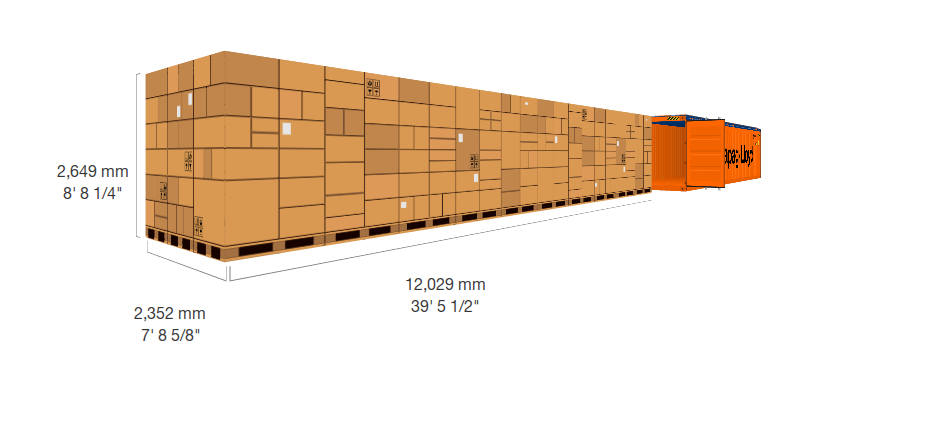

open top high cube Inside Dimensions

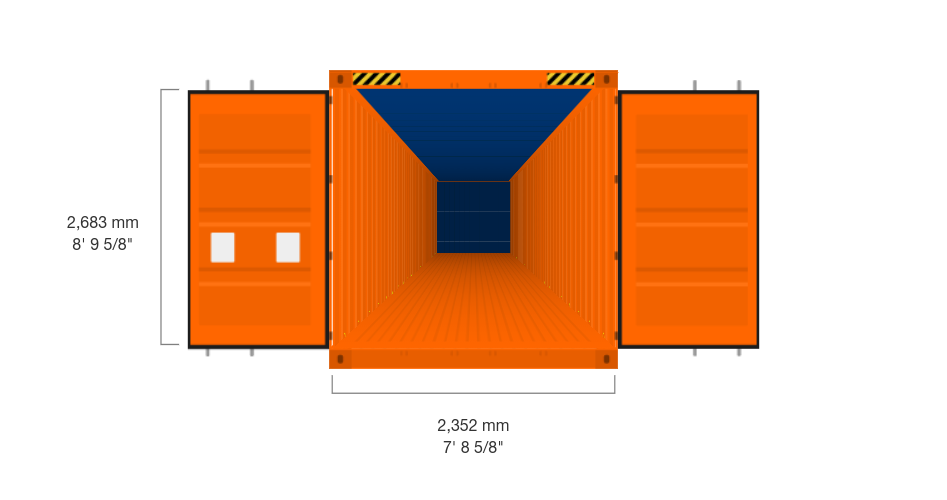

open top high cube Door Opening Dimensions
open top high cube Roof Opening Dimensions
2,335 mm
7' 8" 2,580 mm
8' 5 1/4" 2,347 mm
7' 8 3/8" 2,648 mm
8' 8 1/4" 5,892 mm
19' 3 7/8" 5,391 mm
17' 8 1/4" 2,227 mm
7' 3 3/4"

General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity 36.8 cbm / 1,302 cbft
ISO Type Group 25 UT
ISO Size Type 25 U1

Inside Dimension

Measure Length Width Height
Millimeters 5,892 2,347 2,648
Feet 19' 3 7/8" 7' 8 3/8" 8' 8 1/4"
no roof bars     2,720

Door Opening

Measure Width Height
Millimeters 2,335 2,580
Feet 7' 8" 8' 5 1/4"

Roof Opening

Measures Width Length
Millimeters 2,227 5,391
Feet 7' 3 3/4" 17' 8 1/4"

Weight

Measure Max Gross Tare (Weight) Max Payload
Kilograms 30,480 2,510 27,970
Pounds 67,200 5,530 61,670
