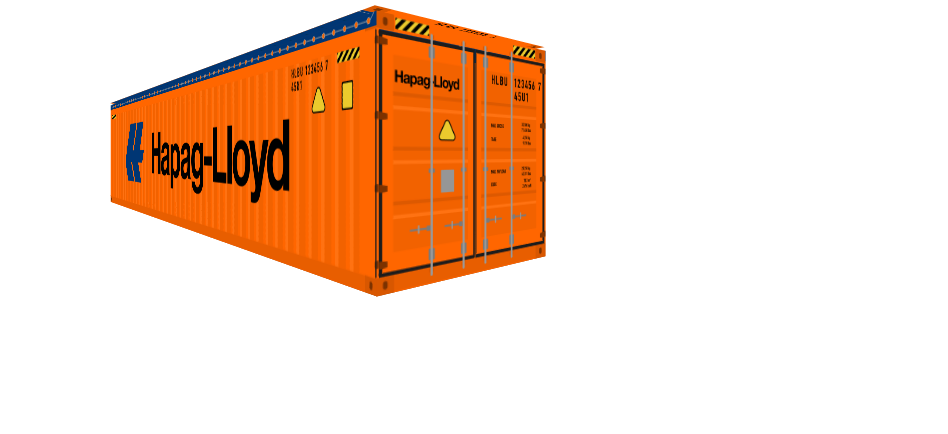

open top high cube Default

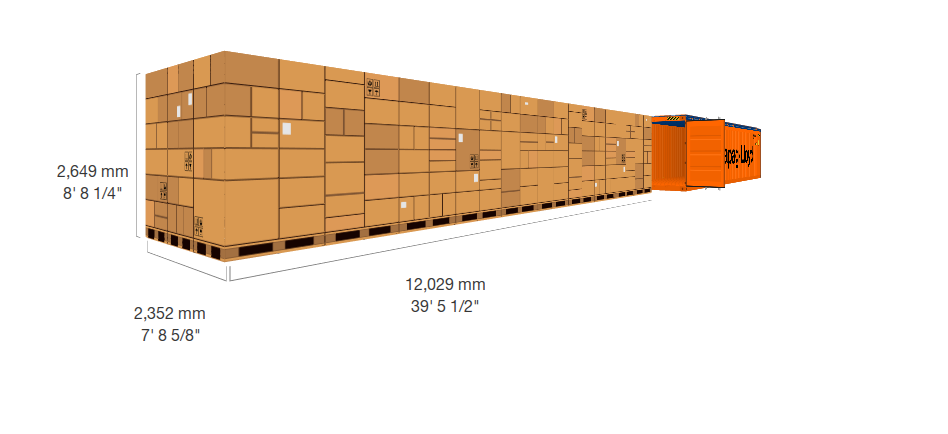

open top high cube Inside Dimensions

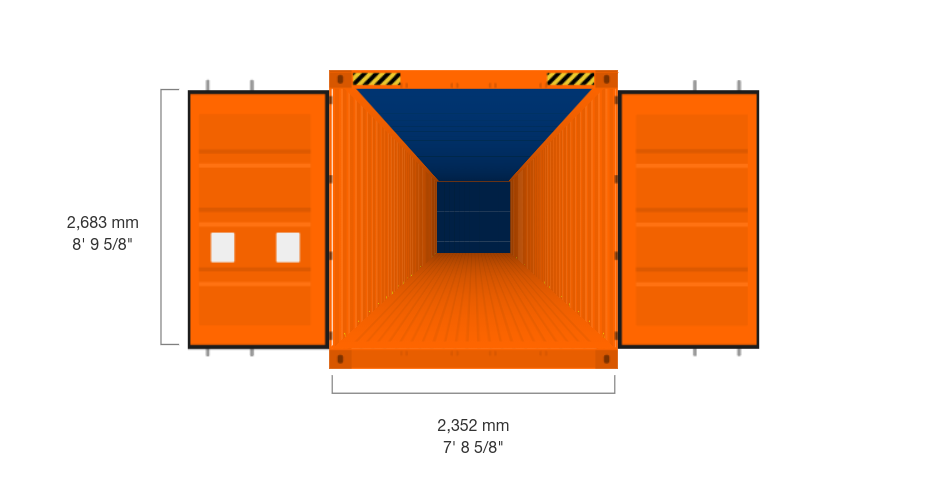

open top high cube Door Opening Dimensions
open top high cube Roof Opening Dimensions
2,352 mm
7' 8 5/8" 2,649 mm
8' 8 1/4" 2,352 mm
7' 8 5/8" 2,683 mm
8' 9 5/8" 12,029 mm
39' 5 1/2" 11,552 mm
37' 10 3/4" 2,192 mm
7' 2 1/4"

General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity 74.9cbm / 2,645cbft
ISO Type Group 45 UT
ISO Size Type 45 U1

Inside Dimension

Measure Length Width Height
Millimeters 12,029 2,352 2,649
Feet 39' 5 1/2" 7' 8 5/8" 8' 8 1/4"
no roof bars     2,720

Door Opening

Measure Width Height
Millimeters 2,352 2,570
Feet 7' 8 5/8" 8' 5 1/8"

Roof Opening

Measures Width Length
Millimeters 2,192 11,552
Feet 7' 2 1/4" 37' 10 3/4"

Weight

Measure Max Gross Tare (Weight) Max Payload
Kilograms 32,500 4,250 28,250
Pounds 71,650 9,370 62,281
